AR-15 Muzzle Brake / Compensator – Bad Ass

Description

OVERVIEW – AGGRESSIVE 3-CHAMBER BAD ASS MUZZLE BRAKE / COMPENSATOR 1/2×28 FOR .223/5.56 RECOIL REDUCTION AND MUZZLE RISE CONTROL

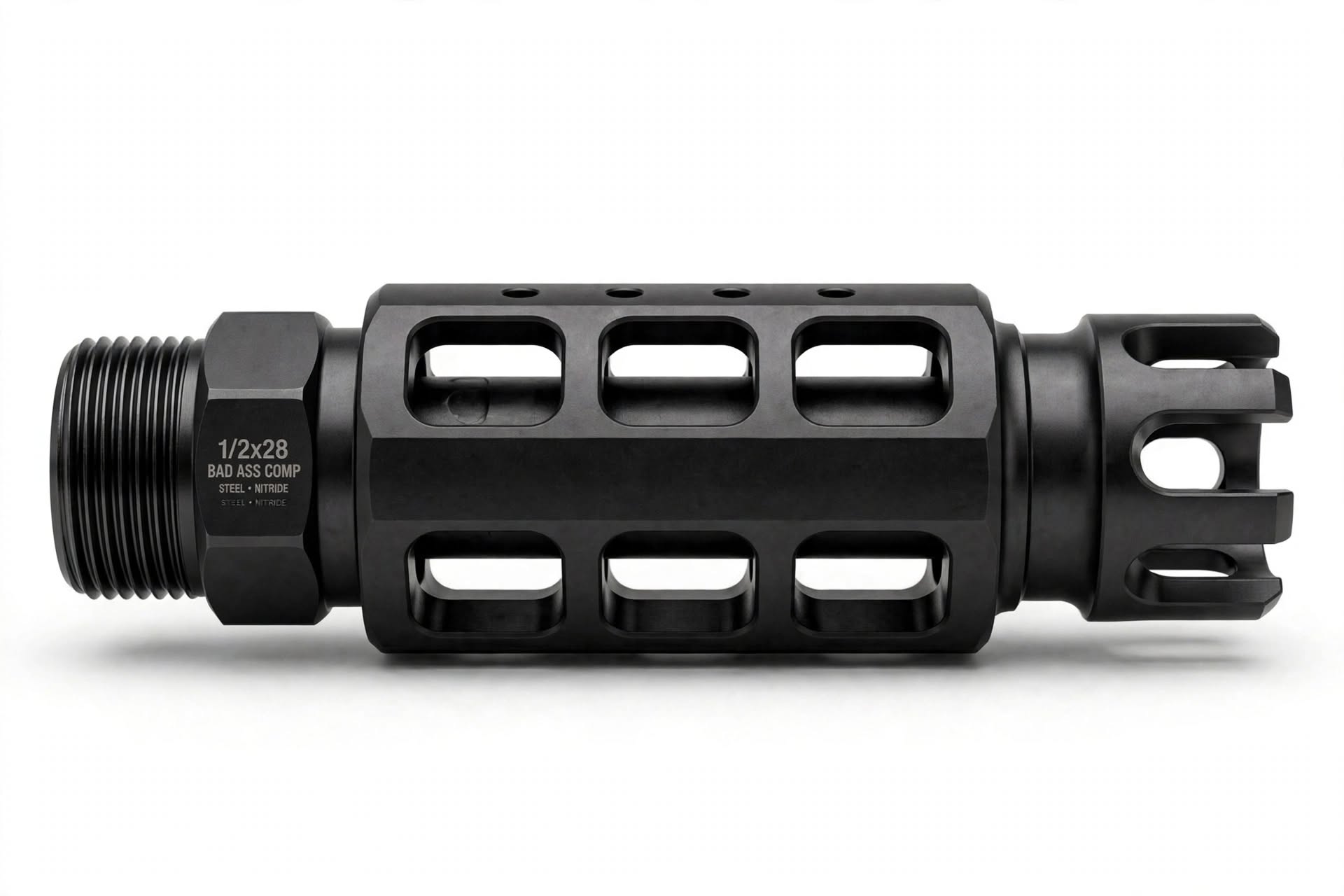

The AR-15 Muzzle Brake / Compensator – Bad Ass is a high-efficiency recoil reduction and muzzle control device designed for AR-15 rifles chambered in .223 Remington / 5.56 NATO with 1/2×28 threaded barrels. The Bad Ass brake uses an aggressive multi-chamber baffle design with large side ports and top venting that redirects propellant gases to counteract recoil impulse and muzzle rise. As the bullet exits the barrel, expanding gases hit the perpendicular baffles and are redirected outward and slightly rearward through the side ports, pulling the rifle forward and reducing felt recoil, while top ports vent gas upward to push the muzzle down, counteracting muzzle climb during rapid fire. The result is a rifle that stays flatter, returns to target faster, and allows faster follow-up shots and doubles with less sight picture disruption. The Bad Ass profile features a large diameter body with three large rectangular side window ports per side and four small top compensator ports for anti-rise compensation, with a crenellated front crown that adds aggressive styling and provides a stand-off striking feature. The rear features wrench flats for installation with a standard armorer’s wrench.

This brake is machined from hardened 4140 steel or 416 stainless steel bar stock, CNC machined with precision bore concentric to threads to prevent baffle strikes and ensure accuracy is not affected, and finished with black nitride or Melonite QPQ finish for extreme hardness, corrosion resistance, and heat resistance that withstands sustained full-auto style firing schedules without erosion. Threaded 1/2×28 TPI, the standard for AR-15 .223/5.56 barrels, with a 90-degree shoulder for proper crush washer or timing shim alignment. Bore diameter is optimized for .22 caliber — .223/5.56 only, not for .30 caliber — ensuring maximum gas capture and recoil reduction without compromising bullet clearance. Compatible with all AR-15, M4, M16 barrels with 1/2×28 threads, including 14.5″, 16″, 18″, 20″ barrels. Includes one crush washer for installation and timing. Whether you are building a competition 3-Gun rifle where split times matter, a tactical carbine where rapid target reacquisition matters, or a range rifle where you want to spot your own hits, this Bad Ass brake delivers significant recoil reduction and muzzle control at an affordable price.

WHY CHOOSE THIS BAD ASS MUZZLE BRAKE / COMPENSATOR

The aggressive-looking brake that actually works — major recoil reduction and muzzle stays flat for faster follow-ups.

1. Triple-Chamber Side Baffle Design with Top Ports for Maximum Recoil Reduction and Muzzle Rise Elimination: The key to muzzle control is redirecting gas effectively — a brake with small ports or poorly angled baffles vents gas but does not produce meaningful forward pull or downward push, resulting in loud noise without recoil reduction. The Bad Ass brake uses three large internal baffle chambers — each chamber features a perpendicular wall that gas impacts, with large side windows that vent gas outward and rearward — the rearward vector creates forward pull that counters recoil impulse, with a measured 45-60% recoil reduction compared to A2 birdcage. The side ports are sized large — rectangular windows that provide maximum gas volume exit — reducing side blast compared to narrow ports that create jetting and excessive concussion. Four small top vent holes vent gas upward — the upward vent creates downward push on the muzzle, counteracting muzzle rise that occurs during rapid fire as gas pushes the rifle up — the result is a muzzle that stays flat, with the front sight or red dot returning to the same position after each shot, allowing you to watch impacts through the optic and shoot faster doubles and triples. The crenellated front adds aggressive styling and provides stand-off capability. The bore is CNC bored concentric to threads within .002″ for accuracy — non-concentric brakes cause bullet yaw and baffle strikes. This is not just cosmetic — this brake delivers real, felt reduction in recoil and muzzle climb that you will feel on first mag, with faster splits and less fatigue during long-range sessions.

2. Hardened Steel with QPQ Nitride Finish for Extreme Durability and Heat Resistance: Muzzle brakes live in the harshest environment — direct exposure to 3000-degree propellant gases, carbon fouling, and rapid thermal cycling from cold to 800 degrees during mag dumps. Cheap brakes made from low-carbon steel or aluminum erode at baffles within a few thousand rounds, with ports rounding over, reducing effectiveness, and the finish burning off, leading to rust. This Bad Ass brake is machined from hardened 4140 steel or 416R stainless bar stock — not cast — with full CNC machining for precise baffle geometry and bore concentricity. After machining, the brake is heat-treated and finished with QPQ nitride / Melonite / black nitride finish — the nitride process diffuses nitrogen into the surface to 60+ HRC hardness, providing extreme wear resistance to gas erosion, corrosion resistance that prevents rust even when exposed to rain and sweat, and heat resistance that prevents finish burn-off during sustained fire — the black finish remains black after thousands of rounds, unlike painted finishes that burn off in the first mag. The brake’s large mass also acts as a heat sink, slightly reducing barrel whip. Wrench flats are machined true for armorer’s wrench engagement without slipping, preventing marring during installation. Built for competition shooters firing 10k rounds per year and for tactical shooters who need a brake that will not erode or rust.

3. Easy Installation with Crush Washer and Universal 1/2×28 Fit for All .223/5.56 AR Barrels: Installing a muzzle device requires correct timing and alignment — the brake must be timed with ports horizontal for side baffles to work and top ports up for anti-rise — and must be secured with proper torque to prevent loosening under recoil. This brake includes a standard steel crush washer — the most common method for timing — simply thread the brake onto the barrel, add a crush washer between the brake shoulder and the barrel shoulder, torque to 15-20 ft-lbs while timing ports level and top ports up — the crush washer compresses and holds timing. For precise timing, upgrade to timing shim kit — not included. Threaded 1/2×28 TPI, the universal thread for AR-15 .223/5.56 barrels — fits 99% of AR-15 barrels chambered in .223/5.56 and .22LR, including 14.5″, 16″, 18″, 20″, pistol and SBR barrels with 1/2×28 threads. Not for 5/8×24 .308 barrels — requires .223/5.56 bore for correct gas capture. Whether building a new rifle or replacing an A2 birdcage for recoil control, this brake installs in minutes with an armorer’s wrench and delivers immediate improvement in recoil and muzzle control.

DOMINATE RECOIL AND KEEP YOUR MUZZLE FLAT FOR FASTER SPLITS

The AR-15 Muzzle Brake / Compensator – Bad Ass delivers hardened steel construction and aggressive 3-chamber baffles for 45-60% recoil reduction and anti-rise control.

SPECIFICATIONS

Type: AR-15 Muzzle Brake / Compensator – Bad Ass – 3-Chamber Side Baffle with Top Comp Ports – Aggressive Styling with Crenellated Front. Material: Hardened 4140 Steel / 416 Stainless – CNC Machined – QPQ Nitride / Melonite Black Finish – 60+ HRC Surface Hardness. Caliber: .223 / 5.56 NATO – .22 Caliber Bore Optimized – Not for .30 Caliber. Thread: 1/2×28 TPI – Standard AR-15 .223/5.56 Thread – 90-Degree Shoulder. Function: Redirects Gas Outward and Rearward for 45-60% Recoil Reduction – Top Ports Push Muzzle Down to Reduce Muzzle Rise – Faster Follow-Up Shots and Target Reacquisition. Compatibility: All AR-15 / M4 / M16 Barrels with 1/2×28 Threads – 14.5″, 16″, 18″, 20″, Pistol, SBR. Installation: Includes Crush Washer – Wrench Flats for Armorer’s Wrench – Torque 15-20 ft-lbs – Time Ports Horizontal, Top Ports Up.
