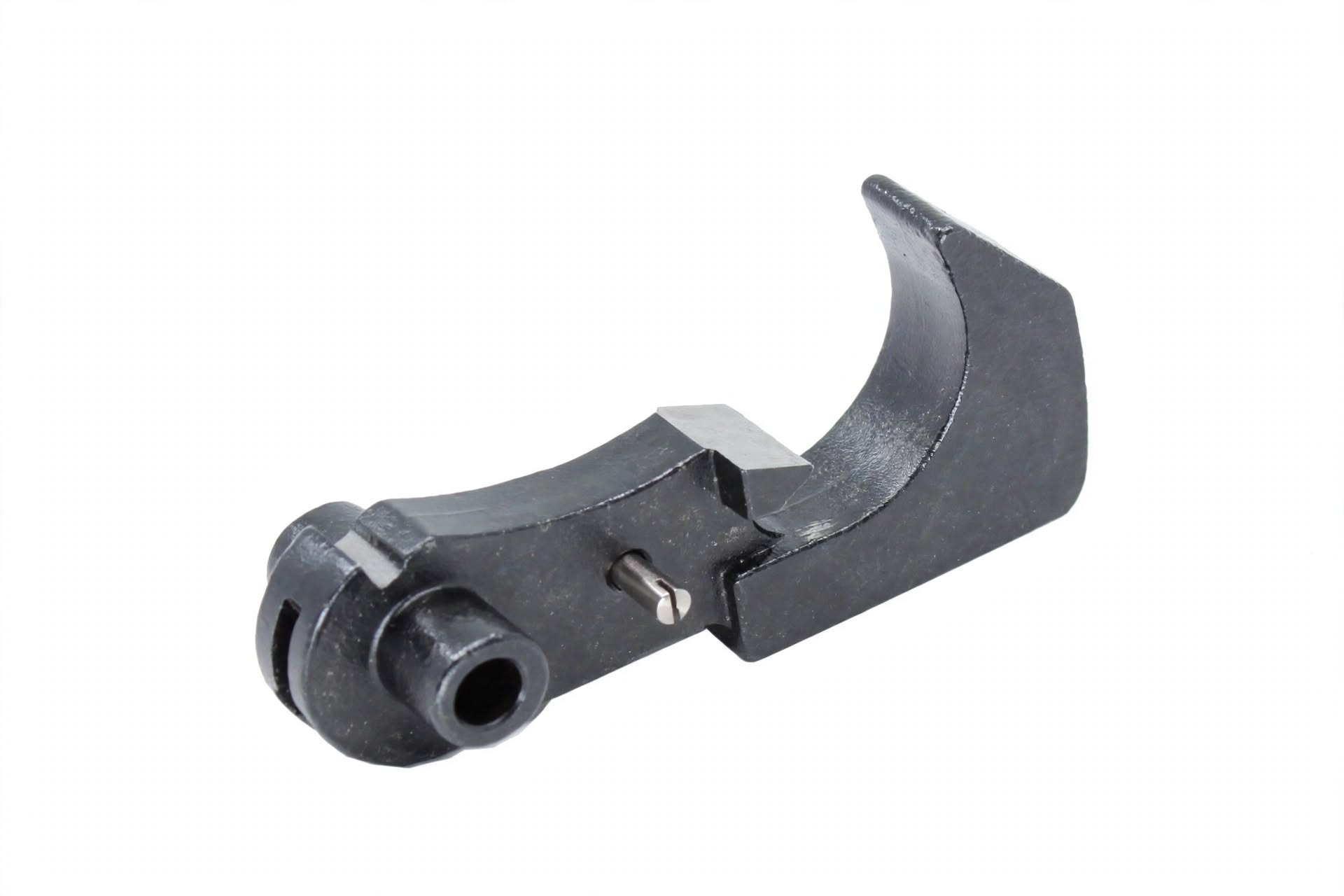

AR-15 LPK Hammer with J Pin

Description

OVERVIEW – MIL-SPEC HAMMER WITH PRE-INSTALLED J PIN FOR RELIABLE IGNITION AND HAMMER PIN RETENTION

The AR-15 LPK Hammer with J Pin is the heart of the fire control group, responsible for striking the firing pin with sufficient force to ignite the primer, and includes the pre-installed J Pin that retains the hammer pin and secures the hammer inside the lower receiver. The hammer sits in the center of the lower receiver, pivoting on the hammer pin, driven forward by the hammer spring. When you pull the trigger, the sear engagement between the trigger and hammer disengages; the hammer spring drives the hammer forward with significant energy; the hammer face strikes the firing pin tail, which in turn strikes the primer to fire the cartridge. The hammer is then cocked back by the bolt carrier as it cycles rearward, where it is caught by the disconnector and then the trigger sear for the next shot. The J Pin is a small, J-shaped spring steel pin pressed into a cross-hole in the hammer body that protrudes into the hammer pin’s center groove, preventing the hammer pin from walking out under recoil and firing cycle. Without this J Pin, or with a missing, bent, or incorrectly installed J Pin, your hammer pin will walk out during firing, causing the hammer to shift, the fire control group to bind, light primer strikes, doubling, or complete failure to fire.

This is a mil-spec replacement hammer with J Pin pre-installed, machined from hardened tool steel or 8620 case-hardened steel, heat-treated for durability and impact resistance, with a properly profiled hammer face, sear hooks, and disconnector hook. The J Pin is factory-pressed to correct depth and orientation for positive hammer pin retention while allowing hammer pin removal with deliberate force for armorer work. Finished with corrosion-resistant black oxide or phosphate for smooth operation. Compatible with all standard AR-15, M4, M16, and AR-10 lower receivers using mil-spec fire control groups, including forged, billet, and 80% lowers, and with all standard mil-spec triggers, disconnectors, hammer springs, and hammer/trigger pins. Whether you are completing a stripped lower, replacing a worn hammer causing light strikes, or stocking your bench with essential FCG spares, this hammer with a pre-installed J Pin restores reliable ignition and hammer pin retention.

WHY CHOOSE THIS HAMMER WITH J PIN

The part that strikes the firing pin and keeps your fire control group from falling apart under fire.

1. Precision-Machined Hammer with Pre-Installed J Pin for Drop-In Installation and Pin Retention: The hammer is a high-stress impact part — its face must strike the firing pin squarely with sufficient energy for reliable ignition of all primers, including hard military primers; its sear engagement surfaces must hold the hammer cocked securely against the trigger sear without creep, and its J Pin must retain the hammer pin permanently. Cheap cast or improperly heat-treated hammers develop wear on sear surfaces, causing a gritty trigger, doubling, or hammer follow, and their hammer face peens or chips, causing light primer strikes. This hammer is precision machined from solid steel, heat-treated for hardness at the impact face and sear surfaces while maintaining toughness in the body to resist cracking. Sear hooks are cut to mil-spec geometry for safe, positive engagement with standard triggers — full engagement prevents doubling and hammer follow, yet allows clean trigger break when disengaged. The hammer face is profiled to strike the firing pin squarely with maximum energy transfer, ensuring reliable ignition even with hard primers, steel-case ammo, and cold weather. The J Pin is the critical detail — this tiny J-shaped spring is notoriously difficult to install, requiring precise alignment and pressing into a small cross-hole where it must be oriented correctly to engage the hammer pin groove. Installed backwards or too deep, it will not retain the pin; too shallow, it will drag and cause gritty hammer movement. This hammer comes with a J-pin factory pre-installed to the correct depth and orientation — pointed leg into the hammer pin channel, spring tension holding the hammer pin securely while still allowing pin removal with a punch when needed. You save 15 minutes of frustration and guarantee correct retention. The hammer pin hole is reamed to mil-spec diameter for a smooth fit on standard hammer pins, allowing free pivoting under hammer spring pressure without excessive play that causes hammer wobble and inconsistent primer strikes.

2. Hardened Steel with Corrosion-Resistant Finish for Tens of Thousands of Impacts: The hammer endures severe impact stress every time it strikes the firing pin — thousands of high-energy impacts that would destroy a soft part. It also lives inside the lower receiver exposed to carbon fouling, gun oils, cleaning solvents, and debris. This hammer is made from properly hardened steel — case-hardened 8620 or through-hardened tool steel — with surface hardness at the hammer face, disconnector hook, and sear engagement surfaces to resist peening, wear, and deformation. The hammer face maintains its flat, square profile after thousands of strikes, ensuring consistent primer impact depth and no light strikes. Sear hooks maintain their edge and engagement surface, preventing trigger creep, doubling, and unsafe wear. The J Pin is spring steel, maintaining tension to retain the hammer pin for the life of the rifle without losing its grip. Black oxide or phosphate finish provides corrosion resistance and lubricity for smooth cocking by the bolt carrier and reduced friction against the hammer pin and lower receiver. The disconnector hook is properly profiled to capture the hammer after firing when the trigger is held back, working correctly with standard disconnectors for reliable semi-auto function. Built for duty, defense, competition, and high-round-count training rifles where ignition must be 100% and hammer pin walk-out is not acceptable.

3. J Pin Pre-Installed Saves Time and Eliminates Most Common FCG Assembly Error: Assembling the fire control group is intimidating for first-time builders — the J Pin is one of the most commonly lost and incorrectly installed tiny parts. It is a small J-shaped wire that must be pressed into a tiny cross-hole in the hammer, with the short leg engaging the hammer pin groove. Builders often lose it, install it backwards, press it too deep so it blocks the hammer pin hole, or not deep enough so it does not retain. A hammer without a J Pin will cause hammer pin walk-out within a few rounds, leading to a non-functional rifle in the middle of a range session or worse, a defense situation. This hammer eliminates that risk by arriving with J Pin correctly pre-installed, tested for retention, and ready to drop into your lower with your hammer spring and pin. No special tools or frustration required — place the hammer spring on the hammer, insert the hammer into the lower, drive the hammer pin through while J Pin snaps into the pin groove with an audible click, confirming retention. Compatible with all standard AR-15 / M4 / M16 / AR-10 lowers. Whether building one lower or multiple, this hammer with J Pin ensures correct hammer pin retention and reliable ignition from the first round.

RESTORE RELIABLE IGNITION AND HAMMER PIN RETENTION

The AR-15 LPK Hammer with J Pin delivers hardened steel construction and a pre-installed J Pin for dependable firing and secure fire control group assembly.

SPECIFICATIONS

Type: AR-15 LPK Hammer with J Pin – Fire Control Group Hammer – Includes J Pin Pre-Installed for Hammer Pin Retention. Material: Hardened Tool Steel / 8620 Case-Hardened Steel – Heat Treated – Impact Face and Sear Surfaces Hardened. Geometry: Mil-Spec Hammer Profile – Properly Profiled Hammer Face for Square Firing Pin Strike – Sear Hooks for Trigger Engagement – Disconnector Hook for Semi-Auto Function – Hammer Pin Hole Reamed to Mil-Spec – J Pin Cross-Hole with J Pin Pre-Installed to Correct Depth/Orientation. Finish: Black Oxide / Phosphate – Corrosion Resistant. Function: Strikes Firing Pin to Ignite Primer – Pivots on Hammer Pin Driven by Hammer Spring – Cocked by Bolt Carrier – Caught by Disconnector and Trigger Sear – J Pin Retains Hammer Pin Preventing Walk-Out. Compatibility: All Standard AR-15 / M4 / M16 / AR-10 Lower Receivers Using Mil-Spec FCG – Forged, Billet, 80% Lowers – All Standard Mil-Spec Triggers, Disconnectors, Hammer Springs, and Hammer/Trigger Pins.
